GOB Small Pitch Led Display Panel
Product Description
GOB Small Pitch LED display Panel is an advanced LED display technology product with the following characteristics:

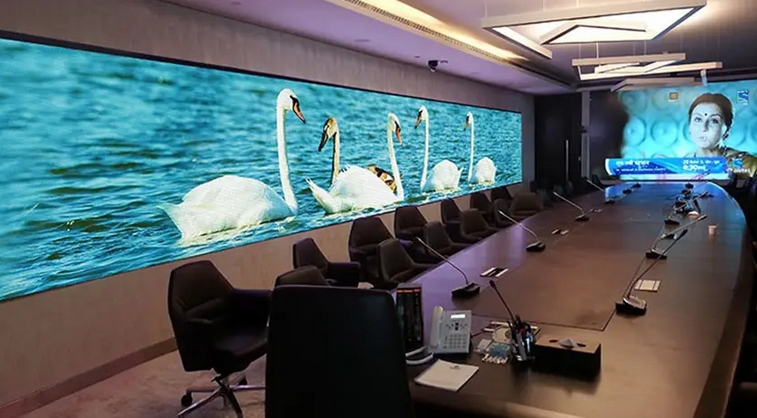

High resolution and delicate picture quality: With small pixel spacing, high-resolution display can be achieved, resulting in clear and delicate images. It can present more details and more realistic images, whether it is text, images, or videos, all of which can be accurately displayed, meeting the high requirements for display accuracy in application scenarios such as conference rooms, monitoring centers, studios, etc.
High contrast and wide color gamut: With high contrast, the bright parts of the picture are brighter and the dark parts are darker, with rich color layers, bright colors, and natural transitions. The characteristic of wide color gamut enables it to present richer and more realistic colors, bringing excellent visual experience to the audience.
High resolution and delicate picture quality: With small pixel spacing, high-resolution display can be achieved, resulting in clear and delicate images. It can present more details and more realistic images, whether it is text, images, or videos, all of which can be accurately displayed, meeting the high requirements for display accuracy in application scenarios such as conference rooms, monitoring centers, studios, etc.
High contrast and wide color gamut: With high contrast, the bright parts of the picture are brighter and the dark parts are darker, with rich color layers, bright colors, and natural transitions. The characteristic of wide color gamut enables it to present richer and more realistic colors, bringing excellent visual experience to the audience.
Indoor Small Pixel Pitch P1.56mm HD LED Video Wall | |||
Pixel Pitch | P1.56mm | Pixel Configuration | 3 IN 1 |
LED Chip | SMD1515 | Module size(mm) | 300mm*168.75mm |
Module Resolution(dots) | 192dots*108dots | Min.Viewing Distance(m) | ≥1 meter |
Brightness | ≥1000CD | Viewing Angle(degree) | ≤180° |

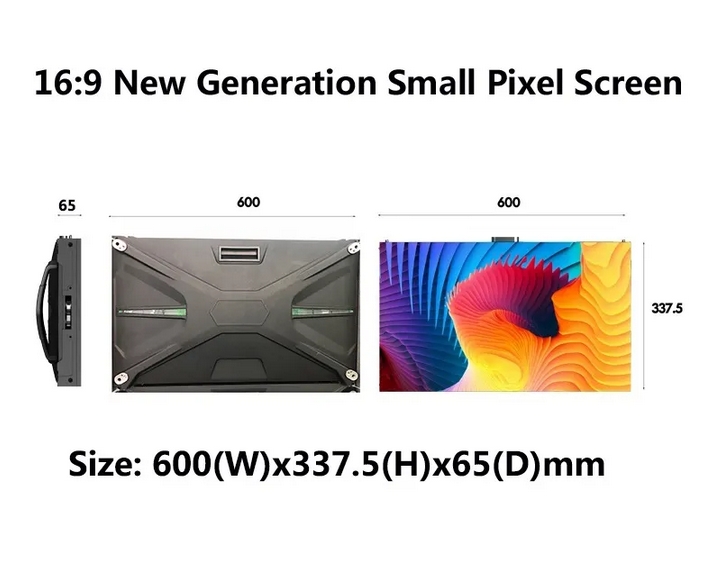

Scan Mode | 1/32 scan | Cabinet Size(mm) | 600*337.5mm |
Pixel Density | 409600/m2 | Import Voltage | AC110/220V |
Cabinet weight | 6.5KG | Cabinet Material | Die-casting Aluminum Cabinet |
Warranty | 3 Years | Temperature Range(℃/RH) | -35℃-80℃/RH |
Life Span | 100000 hours | Certificate | CCC/CE/FCC/ROHS... |

Our company is committed to providing a diverse range of products and services, Mini LED Screen,LCD Video Wall,Indoor Digital Signage,LCD Interactive Whiteboard,Welcome to inquire!
