Small Pixel Pitch COB Led Video Wall Panel

The Small Pixel Pitch COB Led Video Wall Panel is an advanced display technology product with multiple features and advantages

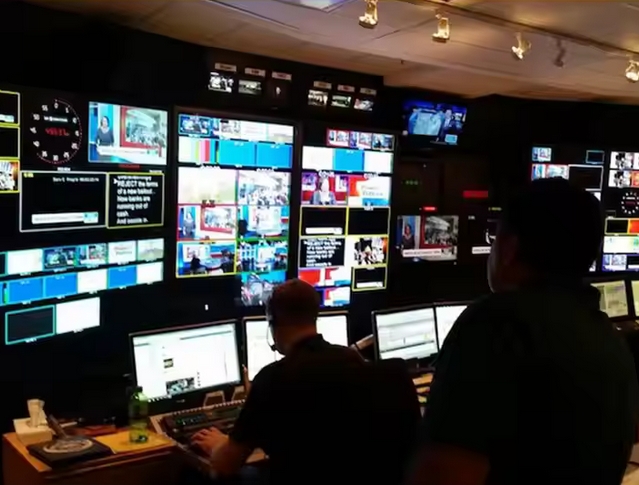

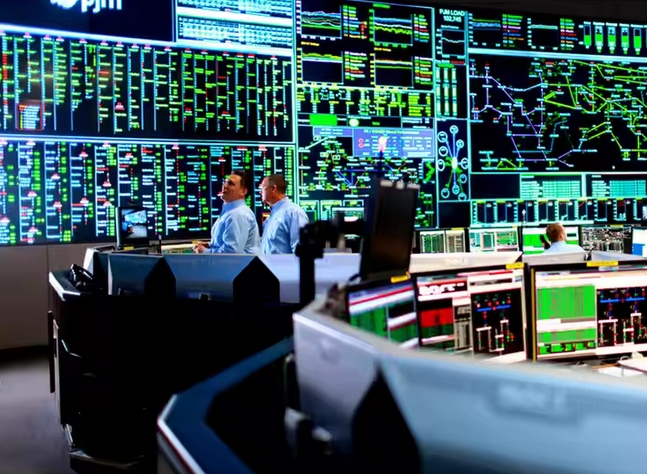

High definition: The small pixel spacing enables the screen to present very clear and delicate images. The common small spacing can reach P1.0 or below, even P0.6, P0.7, etc., and there will be no obvious graininess when viewed up close. It can meet the high requirements for image quality in application scenarios such as high-end conference rooms, command centers, monitoring centers, etc., and can accurately present various detailed information.
High brightness and high contrast: It has high brightness, generally reaching 600 nits or more, and can display images clearly even in bright environments. High contrast makes the bright parts of the image brighter and the dark parts darker, with rich color layers and a more three-dimensional and realistic image, which can vividly display various colors and image content.
Excellent color reproduction: It can cover a wider range of color gamut, accurately reproduce various colors, with bright colors and high saturation, bringing the audience a realistic and brilliant visual experience.



Model	COB-p0.9	COB-p1.2
Pixel Pitch(mm)	0.9mm	1.2mm
Configurantions	COB	COB
Module Size(W*H*T)	150*168.75*2mm	150*168.75*2mm
Cabinet Size(W*H*T)	600*337.5*30mm	600*337.5*30mm
Cabinet material	Die-casting Aluminum	Die-casting Aluminum
Grayscale	14 bit	14 bit
Refresh Rate	3840Hz	3840Hz
Brightness	1000 nits	1000 nits
Viewing angel	170°（H）/ 170°（V）	170°（H）/ 170°（V）
Max.Power consumption(W/㎡)	700	600
Ave.Power consumption（W/㎡）	300	250
Installation	Stacking ,Wall mounted	Stacking ,Wall mounted
Maintenance type	Front maintenance	Front maintenance
