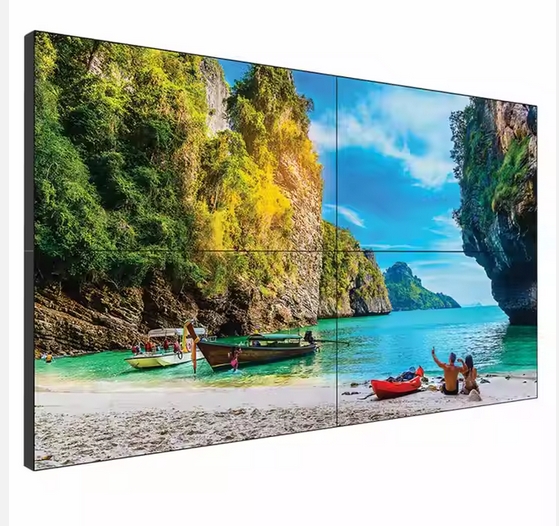

500 brightness Series LCD screen

Brightness Characteristics: The brightness series LCD screen usually adopts advanced backlight technology and energy-saving design, which can reduce energy consumption, extend the device's battery life or reduce energy costs while ensuring high brightness.
Wide viewing angle: This type of screen usually has a wide viewing angle, which can maintain good display effects whether viewed from the front or side. This is very important for scenarios where multiple people are watching simultaneously or using the device from different angles.
Fast response speed: The 500 brightness series LCD screen also has good performance in response speed, which can quickly switch and display images, reduce ghosting and blurring, especially for displaying dynamic images.



Panel Size	46 inch	49 inch	55 inch	65 inch

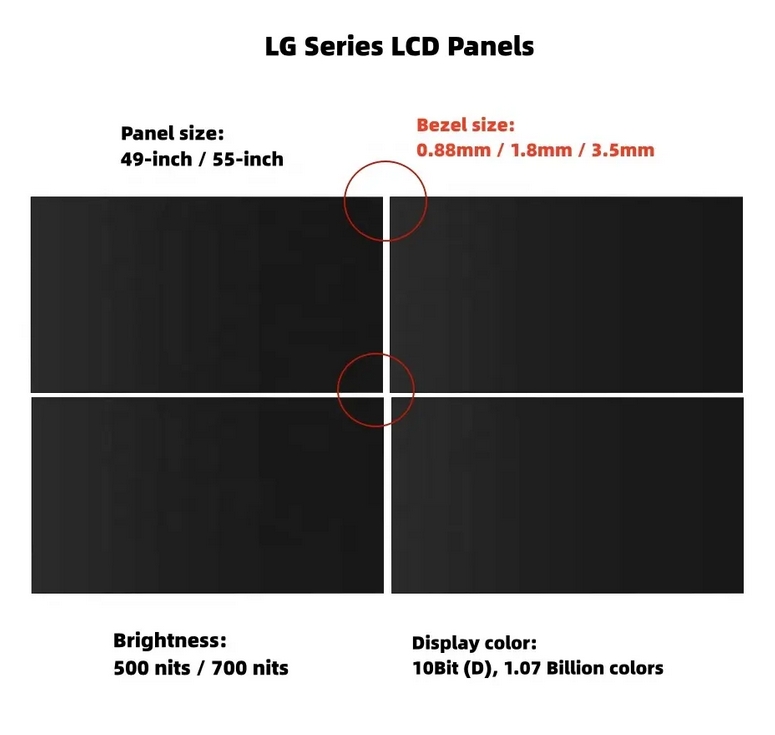

Panel Brand	LG / BOE / Innolux / TCL CSOT etc
Brightness	500 nits / 700 nits
Contrast Ratio	1000:1 / 1200:1 / 1400:1 / 4000:1 / 5000 :1
Viewing Angle	178°(H) / 178°(V)
Power Supply	AC100-240V / 50-60Hz
Lifespan	>50,000hrs
Warranty	1 year, longlife maintenance
Input Voltage	AC100V~240V 50/60Hz
Working Temp	0-50℃
Response Time	6.5ms / 8ms / 9.5ms
Resolution	1920*1080
Display Color	LG(10Bit (D), 1.07 Billion colors) /  other（16.7M colors (8-bit) ）/  4K(1.07G (8bits + FRC ); 8bit driver IC)
Working Humidity	10-80%
Temperature	-20℃~50℃
Humidity	10%-90%RH
Pixel Pitch(mm)	0.372mm / 0.53mm / 0.63mm / 0.55926 / 0.176(H) * 0.53(V) / 0.186(H) * 0.559(V) / 0.21(H) * 0.63(V)
Bezel Width	0.88 / 1.7 / 1.8 / 2.5 / 3.5mm
Connectivity	HDMI / DVI / VGA / AV / RJ45 / Audio / Display Port
Input	1*DVI,1*HD&MI,1* DP (Display port), 1*VGA (SVGA / XGA /WXGA),2*RS232(RJ45)
Output	1* DP (Display port),2*RS232(RJ45)
