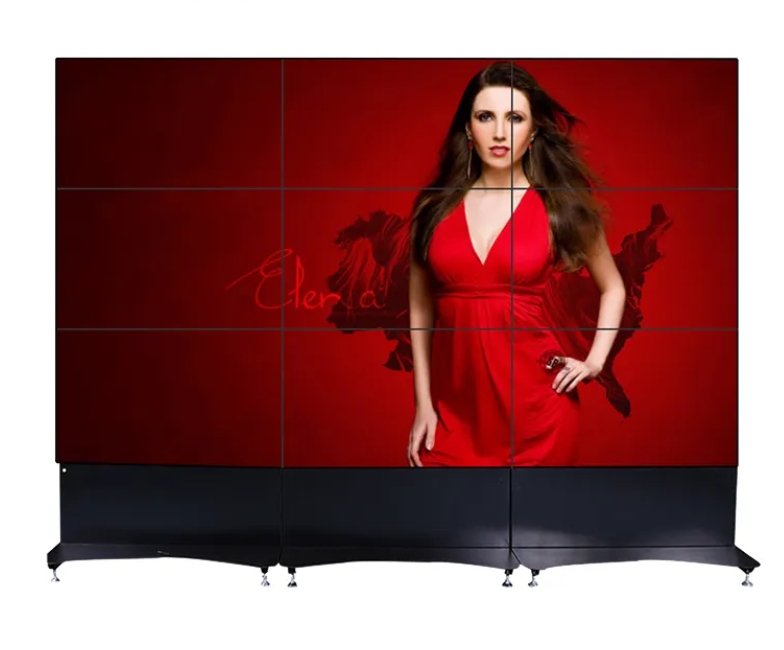

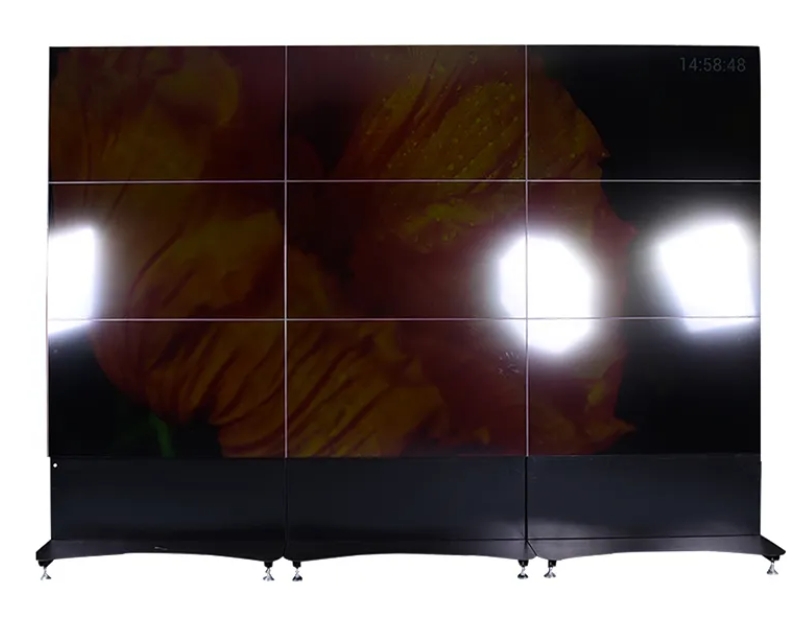

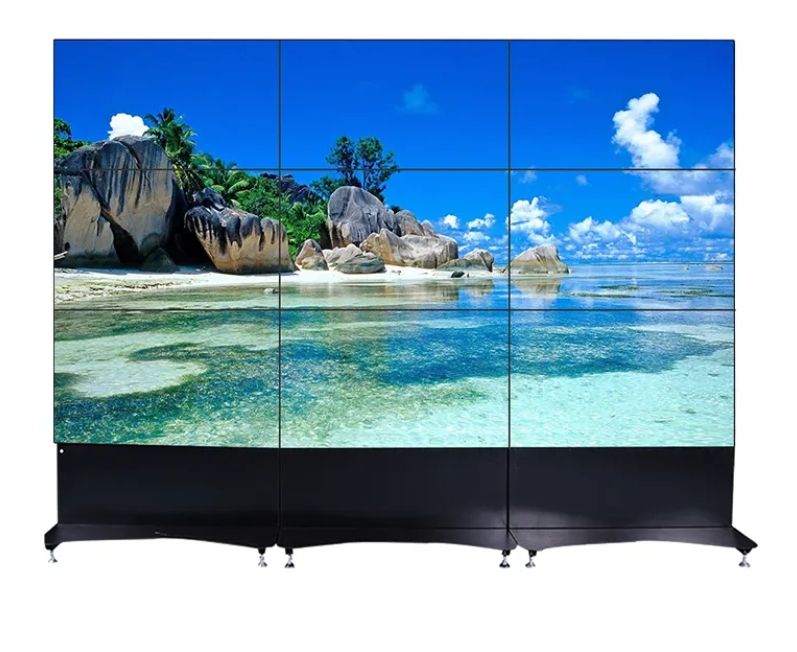

3x3 Lcd Video Wall Tv Display

The 3x3 LCD Video Wall Tv Display is a large screen display system composed of 9 LCD screens, which has a wide range of application scenarios and unique advantages. It has high brightness, with a general brightness value of 450cd/m ² or above, ensuring clear and visible images even in strong lighting environments. A higher contrast makes the bright parts of the image brighter, the dark parts darker, the color hierarchy richer, and the image more vivid and realistic.



1.Industrial design, 80,000 hours of uninterrupted work, stable performance；
2.High resolution, high contrast, wide viewing angle；
3.narrow design, bilateral stitching is only 0.88mm；
4.Using direct type LED backlight system；
5.Built-in mosaic controller can realize image mosaic display function；
6.3D digital image processing kernel for precise monitoring of more details；
7.Image signal gain function, more stable and correct image control；
8.Realize image restoration and improve system reliability；
9.A variety of signal interfaces, supporting a variety of signal input / output.



odel No.	46”、49”、55” DID LCD Panel
Bezel	3.5mm
LCD Panel	Max Resolution Support	1920×1080(H×V)
	Pixel Pitch	0.53025（H）×0.53025 (V)
	Brightness (nits)	500 (cd/ m )
	Contrast	4000:1
	Response Time	8ms
	Color	16.7M
	Visual Angle (H/V)	178°(H) / 178°(V)
Image	178°(H) / 178°(V)	16 : 9
	Picture quality compensation	LTI、CTI
	Motion compensation	AUTO MOVE
	Filter	3D comb filtering，digital noise reduction
	Video format	PAL、NTSC
Video Wall Controller (Built-in each Screen)	Computer centralized control interface	RS232
Structure	Border dimension	Top: 2.25mm; bottom :1.25mm; Left: :2.25mm; Right: 1.25mm
	Net weight	25kg
	Shell material	Metal shell, anti-static,anti-magnetic,anti-strong electric field interference
	Installation way	Wall mount，floor standing mount，hanging mount
