COB Mini indoor LED Video Wall

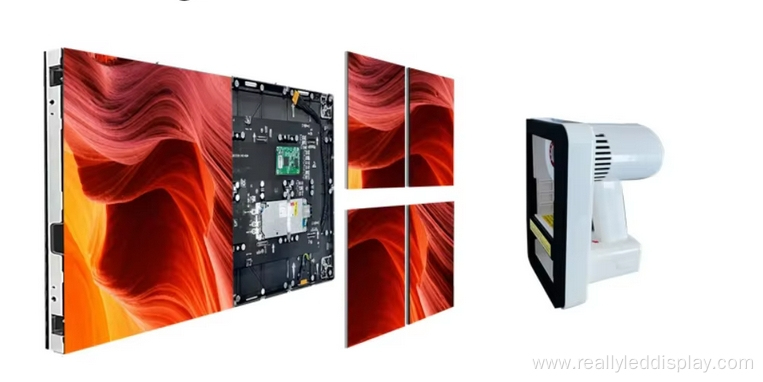

The COB Mini Indoor LED Video Wall has the ability to seamlessly splice multiple display units together to form a large, continuous display screen. The gap at the joint is very small, almost negligible, and can present a smooth and complete image, bringing an integrated visual experience to the audience. It is particularly suitable for large conference rooms, exhibitions, and other places that require high image integrity.
Compared to traditional LED display screens, COB Mini Indoor LED Video Wall is more compact in structure, without the need for additional shells or baseboards, thus greatly reducing size and weight, and facilitating installation and handling. At the same time, this lightweight design also makes the installation of the display screen more flexible in indoor spaces, and can adapt to different installation environments and needs.

Pixel Pitch(mm)	0.93	1.25	1.56	1.875
Pixel Density(dits/㎡)	1137777	640000	409600	284444
LED Encapsulation	COB
Driving Method	54scan	60scan	54scan	40scan
Resolution of Module(dot)	160*180	120*135	96*108	80*90

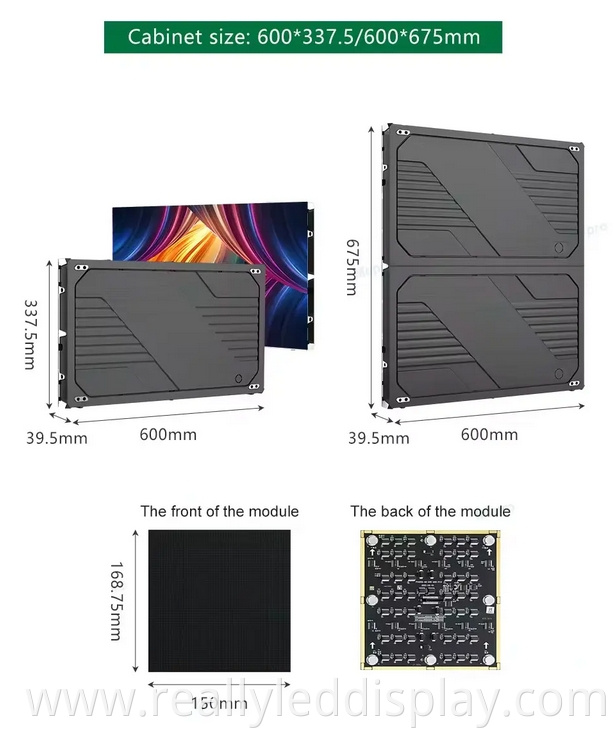

Module Size(mm)	150*168.75
Working Voltage(V)	2.8/3.8	4.2	4.2	4.2
Module Consumption(W)	10	9	9	8
Max.consumption(W/set)	380	330	330	320
Ave.consumption(W/㎡)	125	110	110	110
Brightness(CD/㎡)	600nit (standard)；10000nit (HDR - need customized)
View Angle(H/V)	160°/160°
Refresh Rate(Hz)	2880~3840
Working Temperature	-10~40℃
Protect Degree	IP65
Power supply requirements	AC100-240V (50-60Hz)
Grey / Scale (bit)	16bit
