Really COB LED 4K high definition video wall

The 4K Micro Mini COB Led Video Wall Panel is an advanced display technology product, and the following is a detailed introduction about it:
Resolution refers to the number of pixels per row in the horizontal direction approaching or reaching 4000. This high resolution makes the displayed image very clear, able to present more details and more realistic colors. Whether playing high-definition videos, displaying images, or displaying text information, it has excellent visual effects.
High brightness and contrast: LEDs themselves have high brightness, and the LED chips in the 4K Micro Mini COB LED Video Wall Panel have been specially designed and optimized to provide higher brightness output. At the same time, high contrast creates a sharp contrast between the bright and dark parts of the image, enhancing its sense of hierarchy and depth. Even in environments with strong lighting, it can be displayed clearly.
In the field of commercial advertising, it can be used for advertising display in shopping malls, supermarkets, specialty stores and other places. Its high brightness, high clarity and bright colors can attract consumers' attention and improve the promotional effect of advertising.



Pitch	P0.9375	P1.25	P1.5625	P1.875
LED Type	Mini4合1	SMD1010	SMD1010/1212	SMD1010/1515
Physical density(Dot/sqm)	1137778	640000	409600	284444
Module resolution	320X180	240X135	192X108	160x90
Module size(mm)	300X168.75	300X168.75	300X168.75	300X168.75
Panel Dimension (WXHXD/mm)	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5
Panel Resolution	640X360	480X270	384X216	320x180
Module QTY(WXH)	2X2	2X2	2X2	2X2
Panel weight(kg)	4.5	4.5	4.5	4.5

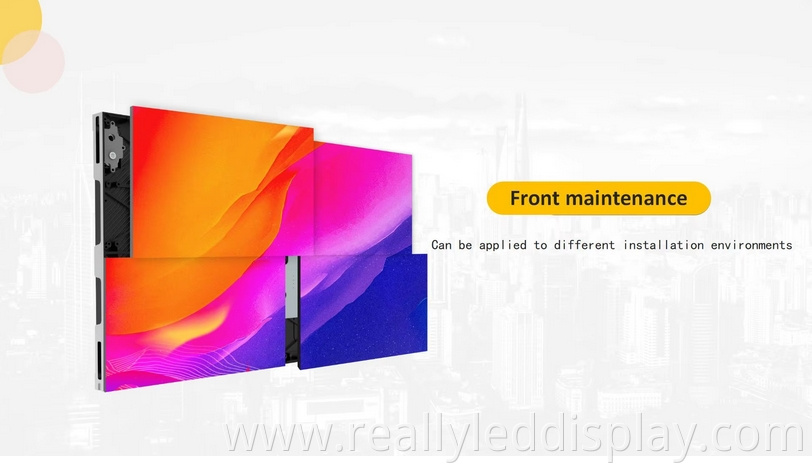

Maintenance Mode	Front maintenance	Front maintenance	Front maintenance	Front maintenance
Cabinet Material	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Brightness Carlibration	Have	Have	Have	Have
Brightness(Nits)	≥600	≥600	≥600	≥600
Color temperature(K)	1000-18500 Optional	1000-18500 Optional	1000-18500 Optional	1000-18500 Optional
Viewing angle(V/H)	170°/170°	170°/170°	170°/170°	170°/170°
Brightness/Color uniformity	≥99.8%	≥99.8%	≥99.8%	≥99.8%
Contrast ratio	10000 : 1	10000 : 1	10000 : 1	10000 : 1
Frame frequency	50/60	50/60	50/60	50/60
Drive mode	1/46 scan	1/45 scan	1/48 scan	1/45 scan
Grey level	16bit	16bit	16bit	16bit
Refresh rate(Hz)	3840	3840	3840	3840
Max. power consumption(W/sqm)	350	350	350	350
Avg. power consumption(W/sqm)	100	100	100	100
Protection level	IP31	IP31	IP31	IP31
Power input	AC90-264V,47-63Hz
Wroking temperature/humidity(℃/RH)	-20~60℃/10%~85%
Storage temperature/humidity(℃/RH)	-20~60℃/10%~85%
