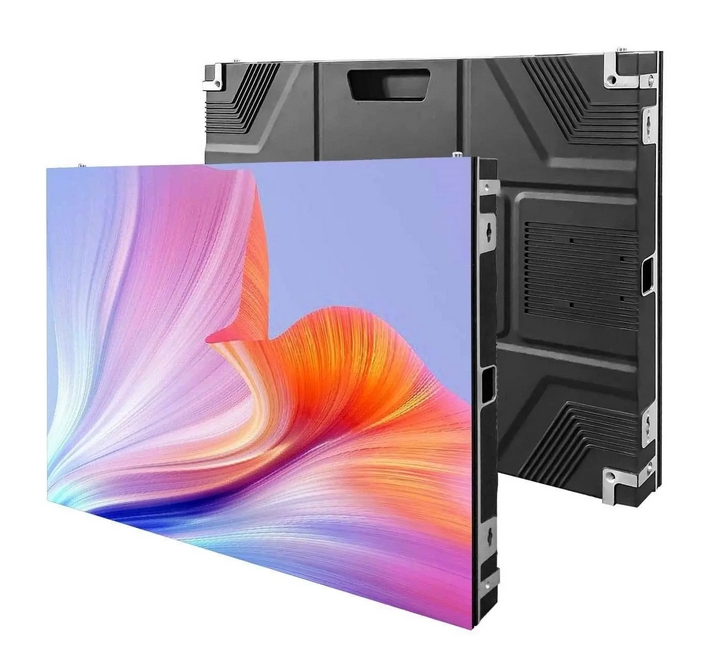

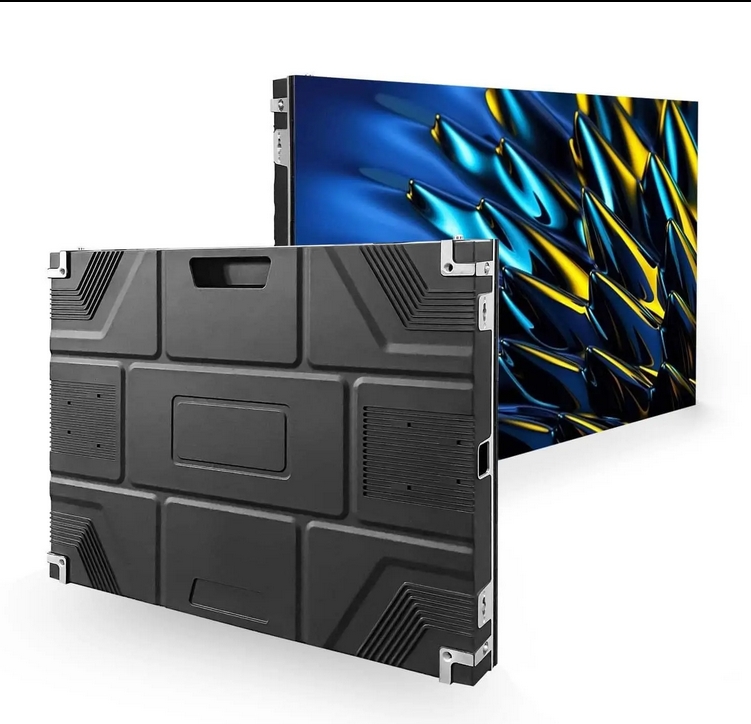

Mini Interior Micro Thin LED Video Wall Display

Product Description

Mini Interior Micro Thin LED Video Wall Display is an advanced display technology product with the following features:
High resolution and high definition: With extremely small pixel spacing, it can present delicate and clear images and text. Common pixel spacings include P0.9, P1.2, P1.5, etc., which can meet indoor application scenarios with high display accuracy requirements, such as conference rooms, monitoring centers, exhibition halls, etc.
High brightness and high contrast: With high brightness output, it can maintain clear display effects in indoor ambient light. High contrast makes the bright and dark parts of the image brighter, the color hierarchy more distinct, and the image more three-dimensional and realistic.
Excellent color reproduction: It can cover a wide range of color gamut, with bright colors and high saturation, accurately reproducing various colors, bringing viewers a realistic and brilliant visual experience.
High reliability and stability:
Good heat dissipation performance: The heat generated by LED chips can be quickly and effectively dissipated, reducing the risk of performance degradation and malfunction caused by overheating, and ensuring the stability of the screen during long-term operation. For example, some products may adopt special heat dissipation structure designs or efficient heat dissipation materials.
Low defect rate: The continuous improvement of manufacturing processes greatly reduces the defect rate of screens, ensuring the integrity and consistency of display images, reducing maintenance costs and difficulties during use.

Technical Parameter
Item	Pitch 1.25	Pitch 1.86	Pitch 2	Pitch2.5
Pixel pitch	1.25MM	1.86MM	2MM	2.5MM
Module size	320x160MM	320x160MM	320x160MM	320x160MM
Module resolution	256x128	172x86	160x80	128x64
Physical Density	640000 dots/sqm	288906 dots/sqm	250000 dots/sqm	160000 dots/sqm
LED type	SMD1010	SMD1515	SMD1515	SMD2020
Cabinet sie	640x480MM	640x480MM	640x480MM	640x480MM
Cabinet resolution	512x384	344X258	320x240	256x192
Cabinet weight	8KG	8KG	8KG	8KG
cabinet material	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Maintenance way	Front access	Front access	Front access	Front access
Best viewing distance	>1.5M	>2M	>2M	>2.5M
Best viewing angle	H:160。;V:120。	H:160。;V:120。	H:160。;V:120。	H:160。;V:120。
Driving method(constant current)	1/64	1/43	1/40 scan	1/32 scan
Refresh rate	1920-3840Hz	1920-3840Hz	1920-3840Hz	1920-3840Hz
Brightness	>800 nits	>800 nits	>800 nits	>800 nits
Grey Level	12-16 bit	12-16 bit	12-16 bit	12-16 bit
Life time	>1000,000 hours	>1000,000 hours	>1000,000 hours	>1000,000 hours
