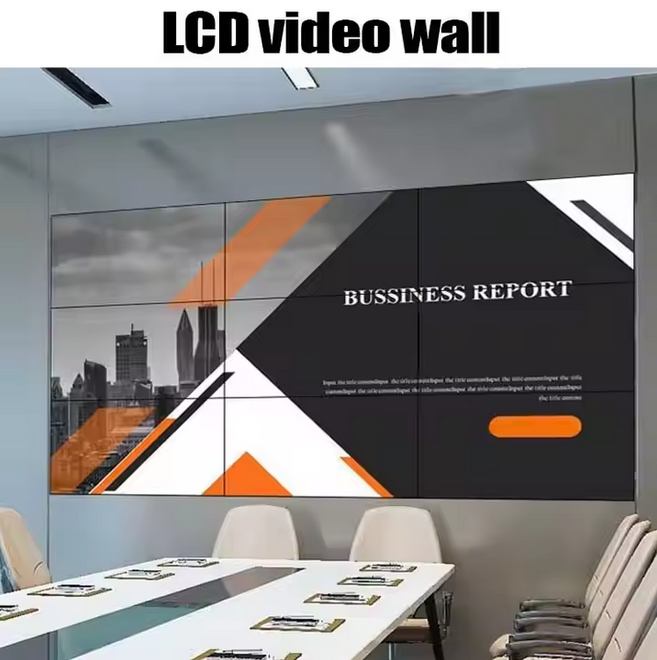

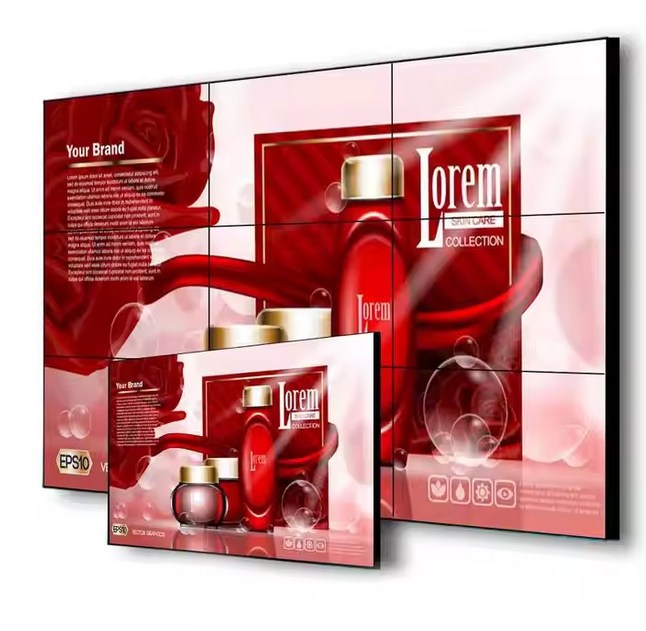

Panels mulit splicing screens Lcd Video Wall



Each LCD panel is composed of a liquid crystal layer, backlight, polarizer, electrode plate, etc. By controlling the arrangement and distortion of liquid crystal molecules, the amount of transmitted light can be adjusted to achieve image display. LCD panels of different sizes and specifications can be selected according to needs, commonly including 46 inches, 55 inches, etc.

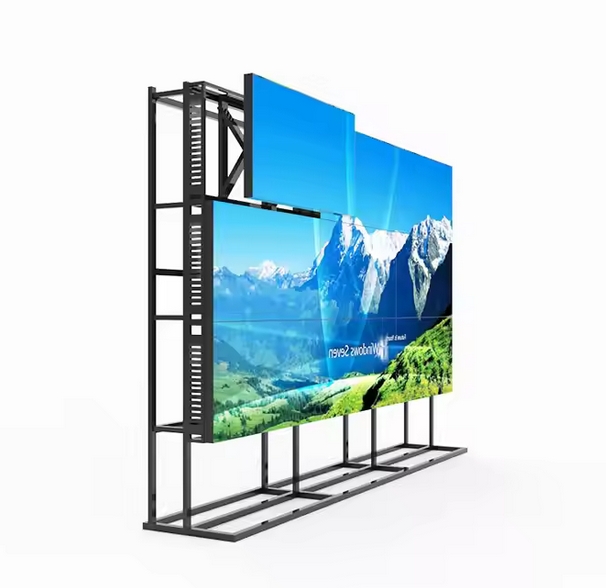

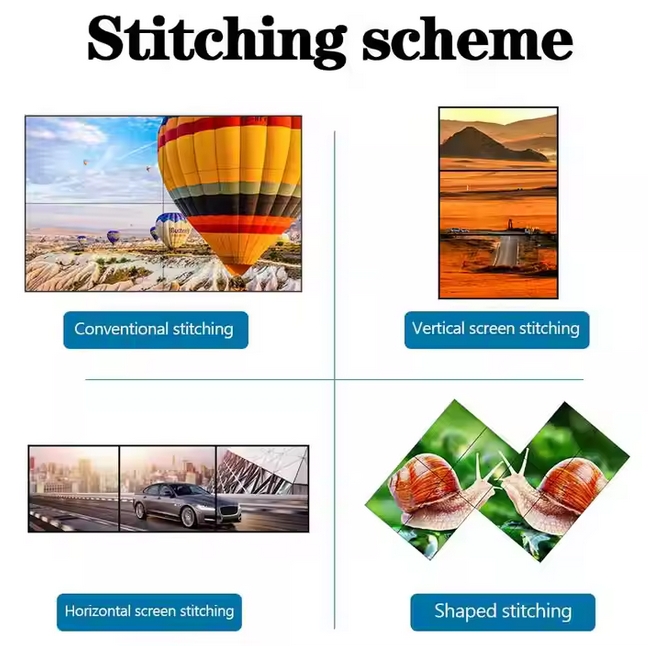

Splicing structure: used to connect multiple LCD panels together to form a cohesive video wall. The splicing structure needs to ensure that the splicing gap between adjacent panels is as small as possible to achieve seamless or nearly seamless display effects. The commonly used splicing methods include straight seam splicing and seamless splicing. The gap of straight seam splicing is relatively obvious, usually 3.5mm or more; Seamless splicing, on the other hand, uses special technical means to control the splicing gap within a very small range, and can even achieve a visually seamless effect.

Panel type	49” LCD DID Panel
Show size	1078.9*610.4mm(H*V)
Show ratio	16:9
Backlight	LED (Straight-down)
Resolution	1920(RGB)×1080(FHD)
Color	16.7M (8bit)
Brightness	500cd/m2 ; 700cd/m2(Optional)
Contrast ratio	3000:1
Visual angle	178°(H) / 178°(V)
Response time	6ms
Life expectancy	60000 Hours
Physical seam	0.8~3.5mm

Our company is committed to providing a diverse range of products and services, COB LED Screen,Mini LED Screen,LCD Video Wall,Indoor Digital Signage， Welcome to inquire!
