Outdoor LED Advertising Screen 3D Digital Billboard

Product Description

The Outdoor LED Advertising Screen 3D Digital Billboard is a revolutionary advertising medium that combines advanced LED technology with captivating 3D visuals.
The 3D digital billboard creates an immersive visual experience that grabs the attention of passersby like never before. With its realistic 3D effects, it brings advertising content to life, making it more engaging and memorable.
For example, an advertisement for a new car model can showcase the vehicle in 3D, allowing viewers to see it from different angles and appreciate its design and features in a way that traditional 2D billboards cannot achieve.

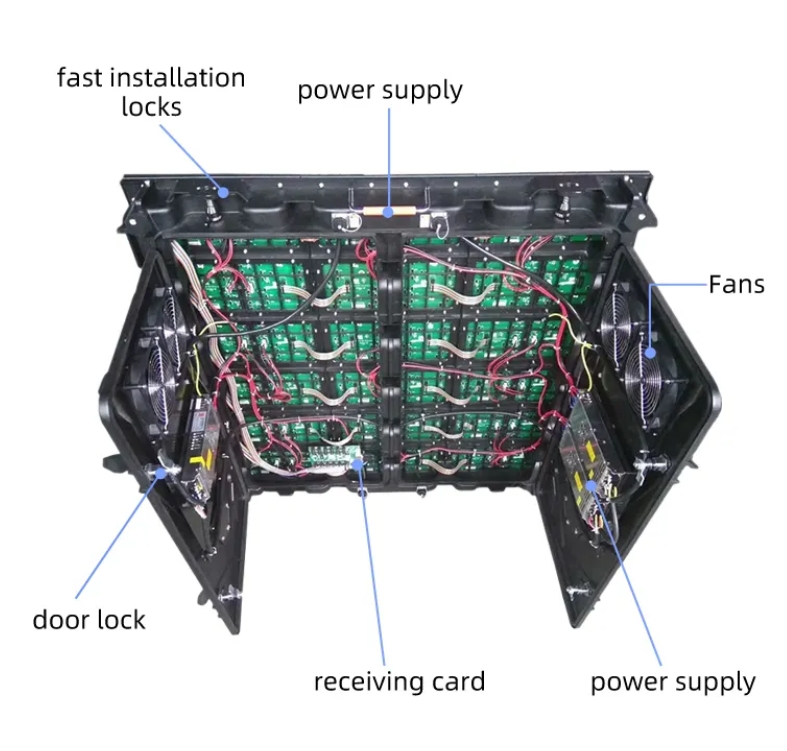

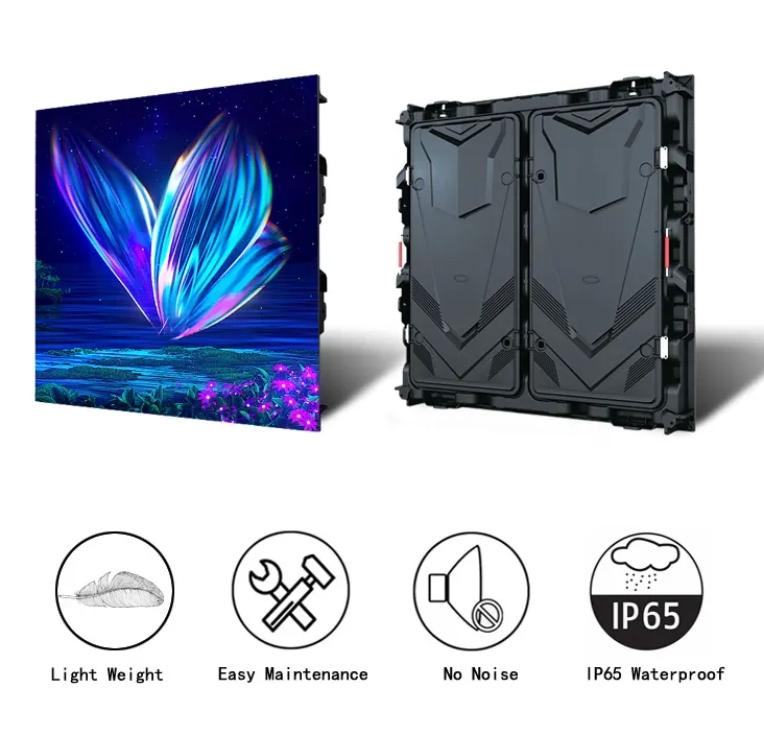

1：Light weight, each cabinet only 28KG.
2：Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3：Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4：Front or back side maintenance, you can choose by different requirement.

Item	P5	P6.67	P8	P10
Pixel Pitch	5mm	6.67mm	8mm	10mm
Module Size	320x160mm	320x160mm	320x160mm	320x160mm
Pixel Density	40000dots/sqm	22477dots/sqm	15625dots/sqm	10000dots/sqm
Panel Size	960x960mm	960x960mm	960x960mm	960x960mm
Panel Material	Die casting magnesium	Die casting magnesium	Die casting magnesium	Die casting magnesium
Panel Weight	28KG/pc	28KG/pc	28KG/pc	28KG/pc
Drive Method	1/8 scan	1/8 scan	1/4 scan	1/2 scan
Best Viewing Distance	5-50m	6-70m	8-80m	10-100m
Vieweing Angle	H160° V140°	H160° V140°	H160° V140°	H160° V140°
Refresh Rate	1920Hz	1920Hz	1920Hz	1920Hz
Brightness	5500nits	5500nits	6000nits	7000nits
Max Power Consumption	900W/sqm	800W/sqm	700W/sqm	600W/sqm
Average Power Consumption	400W/sqm	350W/sqm	300W/sqm	280W/sqm
Waterproof Level	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54
Life Span	100000hours	100000hours	100000hours	100000hours
